9.60kWh Rack Mounted Lithium Battery for Solar System - 5 Year Warranty
Fast & Free Shipping is available on this product
9.60kWh Rack Mounted Lithium Battery for Solar System
HESS Solar Battery System c/w LCD Display with 5-Year Warranty
Product Benefits:
- 9.60kW Rack Mounted Lithium Battery
- Features the newest technology LiFePO4 Batteries
- Modular Battery Design
- IP20 Rated
- UP TO 5-YEAR WARRANTY: PRODUCT MATERIAL & WORKMANSHIP
Features:
- Self-Designed BMS International Design Certification
- LifePO4 cells, ensuring the safety of the battery
- Long cyclic life 6000 cycles (80% DOD)
- High Rate Charge / Discharge Current @ 100A
- Modular Design of easy expandability
- LCD Display

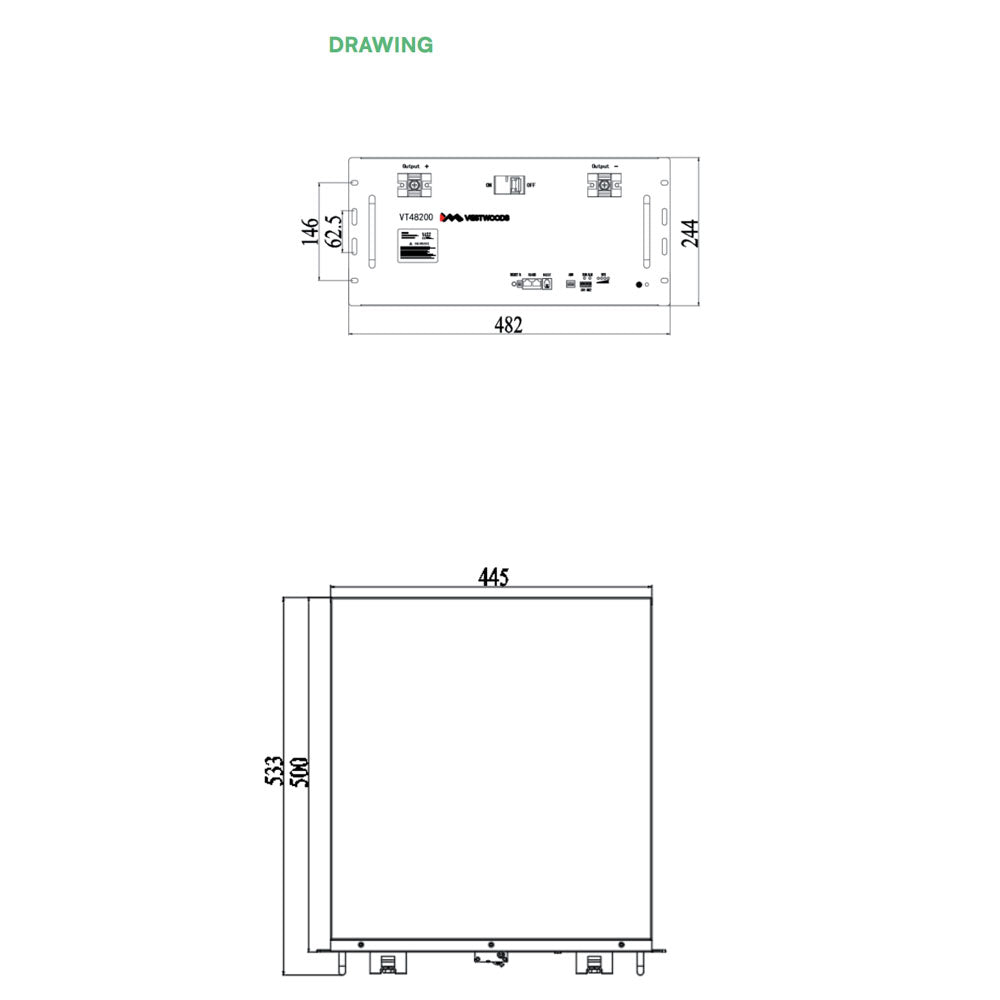

- Width: 445mm
- Height: 244mm
- Depth: 500mm
Battery Warranty:
- 5 Year Warranty
Battery Specification:
| Nominal Capacity | 200Ah @ 0.2C, 25°C |
| Nominal Voltage | 48.0V |
| Nominal Energy | 9.60kWh @ 0.2C, 25°C |
| Charge Voltage | 54.0V |
| Max Continuous Charge Current | 100A @ 25 °C |
| Discharge Cut-off Voltage | 40.5V |
| Max Continuous Discharge Current | 100A @ 25 °C |
| Operating Temperature Charge | 0~+60°C |
| Operating Temperature Discharge | -20~+60°C |
| Allowed Humidity Range | ≤95% RH |
| IP Rating | IP20 |
| Net Weight | 81kg |
| Height | 244mm |
| Width | 445mm |
| Depth | 500mm |
| LCD Display | Yes |
| Battery Type | LiFePO4 Cathode Material |
| Cyclic Life | 6000 |
| DOD | 80% |
| Cooling Method | Smart Cooling |
| SKU Code: | 11523 |
| Warranty | 5 Years |
Downloads:
9.60kWh Rack Mounted Lithium Battery for Solar System - 5 Year Warranty
Sale price£2,415.00
